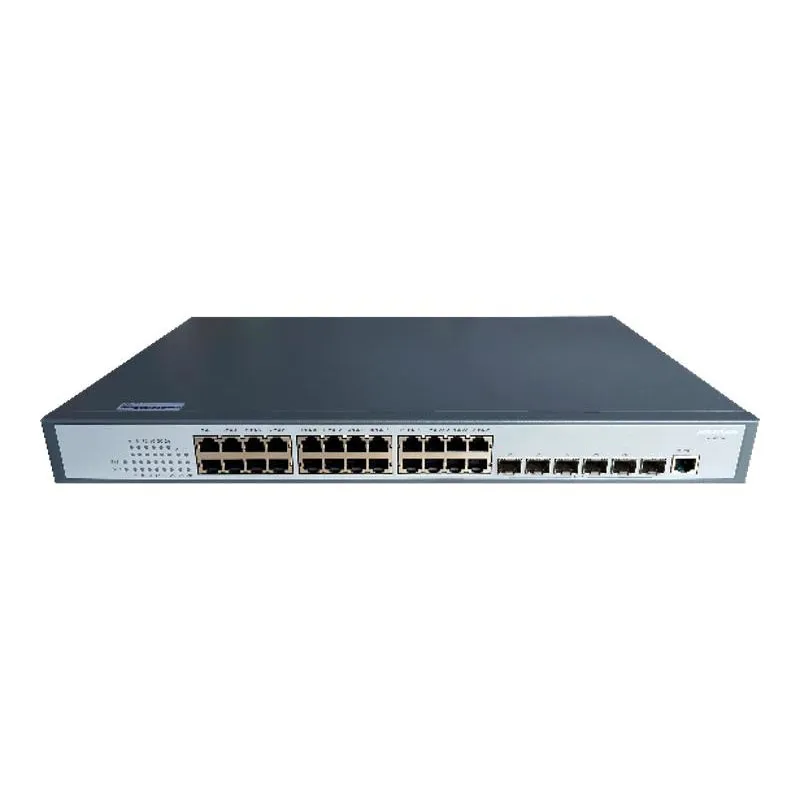

Hikvision DS-3E3730 30 Port 10 G L3 Switch
- L3, Full managed
- 24 Gigabit RJ45 ports, 6 10G SFP+ ports,
- OSPF,
- IPv6,
- IEEE802.1x,
- IGMP,
- STP/RSTP/MSTP/ERPS/VRRP,
- Console/web/ssh management
- 24 Gigabit electrical ports and 6 10 Gigabit SFP+ optical ports.
- Support static routing, policy routing, rip, OSPF,BGP,MPLS and other three-layer routing protocols.
- IGMP snooping and GRMP for filtering multicast traffic.
- Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
- Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
- Support DHCP Server、DHCP Relay、DHCP Snooping.
- Support EAPs and ERPs Ethernet ring network protection protocol.
- QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
- Easy network management by web browser, Console, Telnet, SSH.
- SNMPv1/v2c/v3 for different levels of network management.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
-
General
- Shell: Iron shell, fan cooling design
- Net Weight: 3.4 kg (7.50 lb)
- Dimensions: (W × H × D)440.00 mm × 44.00 mm × 280.00 mm (17.32'' × 1.73'' × 11.02'')
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature: -20 °C to 70 °C (-4 °F to 158 °F)
- Operating Humidity: 10% to 90% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Consumption in Idle: 75 W
-
Network Parameters
- Ports: 24 × 1 Gigabit RJ45 port,6 × 10 Gigabit fiber optical port
- Forwarding Mode: Store-and-forward switching
- MAC Address Table: 32 K
- Switching Capacity
Whole-Device Performance: 168 Gbps
Port Performance: 168 Gbps
- Packet Forwarding Rate
Whole-Device Performance: 124.99 Mpps
Port Performance: 124.99 Mpps
-
Software Function
- Device Maintenance
Support Console, Telnet, SSH
Support web, http, https
Support FTP, TFTP, Xmodem, SFTP
Support SNMP V1/V2c/V3
Support RMON
Support NTP
- Reliability
Support STP/RSTP/MSTP
Support EAPS/MEAPS
Support MRD-Ring
Support ERPS
Support VRRP
Support BFD for OSPF
Support BFD for BGP
- VLAN
Support IEEE 802.1Q (VLAN), 4096 VLAN IDs
Support GVRP
Support QinQ
Support VLAN based on MAC/protocol/IP subnet/policy/port
Support Private VLAN
Support 1:1 and N:1 VLAN mapping functions
- Port Mirroring
Support local and remote port mirroring
Support N:4 port mirroring
Support flow mirroring
Support MAC mirroring
- Routing Feature
Support static routing, RIP, OSPF, BGP, MPLS
Support IPv4/IPv6 ECMP
Support VRRP, VRRP v3
Support IPv4/IPv6 policy-based routing
Support IPv4/IPv6 routing policy
Support IPv4/IPv6 dual stack
Support IPv6 static routing, RIPng, OSPFv3
- QoS
Support Diff-Serv QoS
Support 802.1p/DSCP priority mapping
Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ
Support priority marking and remarking
Support traffic shaping
Support congestion avoidance, Tail-Drop and WRED
Support 802.1p, TOS, DSCP, and EXP priority mapping
Support port/flow-based rate limiting
- Multicast
Support IGMP v1/v2/v3 Snooping
Support IGMP V1/V2/V3
Support MLD Snooping v1/v2
Support MLD v1/v2
- ACL
Support IP-based ACL/MAC-based ACL
Support based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority
Support up to 256 ACLs
- Link AggregationSupport IEEE 802.3ad LACP/static link aggregation
- Security
Support AAA,TACACS+ Radius authentication
Support 802.1X authentication, MAC authentication, MAC bypass authentication
Support to prevent DOS, ARP attack function, ICMP anti attack
Support binding of IP, MAC, port and VLAN
Support MAC authentication
Support MAC address filtering
Support broadcast/multicast/unknown-unicast storm control
