Hikvision DS-PDTT15AM-LM Wired Triple Signal Detector

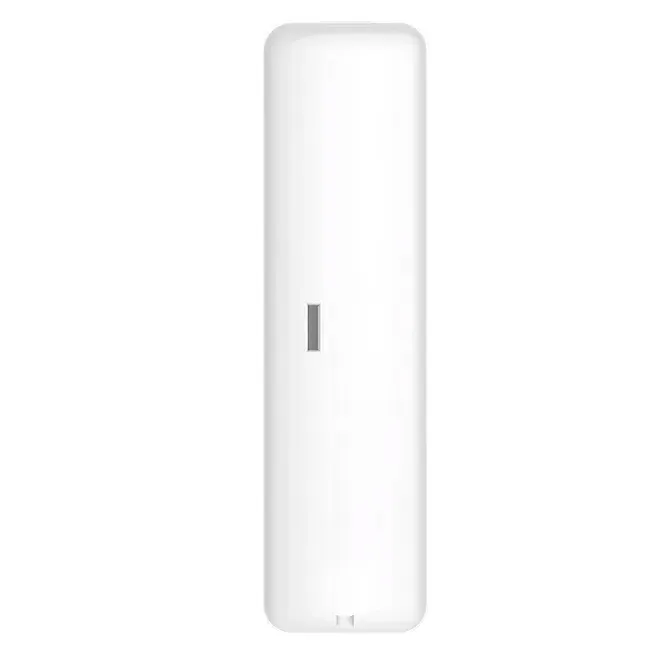

DS-PDSK-P
Wired Shock Detector

• Reliable perimeter protection offering early detection
• Adjustable sensitivity with gross attack override
• Advanced Digital Background-Noise Filter

Detection Performance

• Detection Method – Shock Sensor
• Sensitivity – Potentiometer Adjustment

Feature

• Digital Processing – Support
• Tamper Protection – Front

Interface

• Alarm Output – Normally Closed
• LED Indicator – Blue(Alarm)

Transmission

• Transmission Method – Wired

Electrical Characteristics

• Power Supply – 9 – 16 VDC
• Typical Voltage – 12 V
• Power Consumption30mA

General

• Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity – 10% to 90%
• Dimension(WxHxD) – 30 mm x 108 mm x 22 mm
• 37.5 g
• Application Scenario – Indoor
