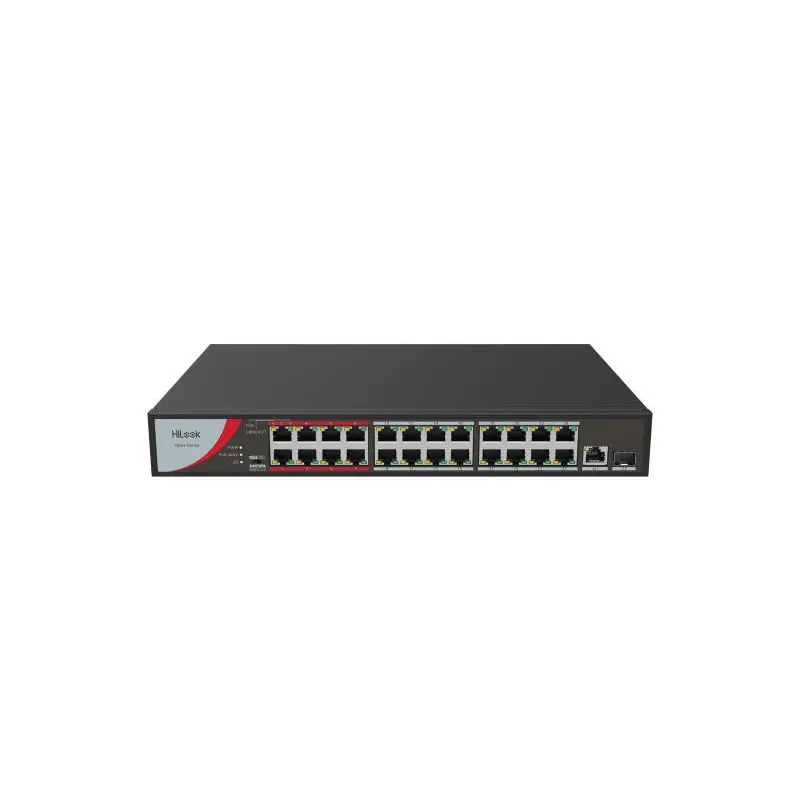

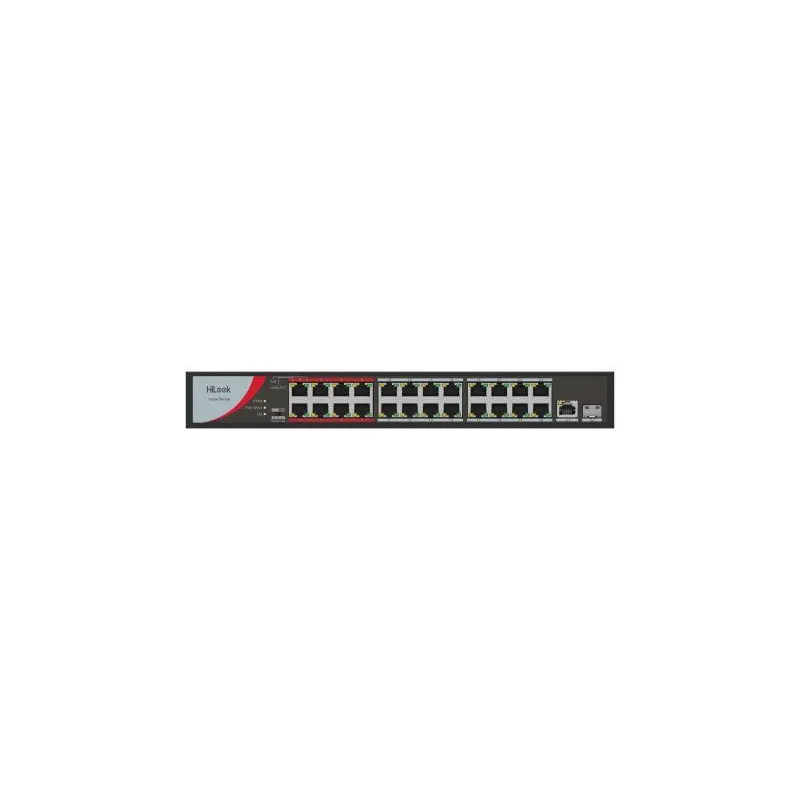

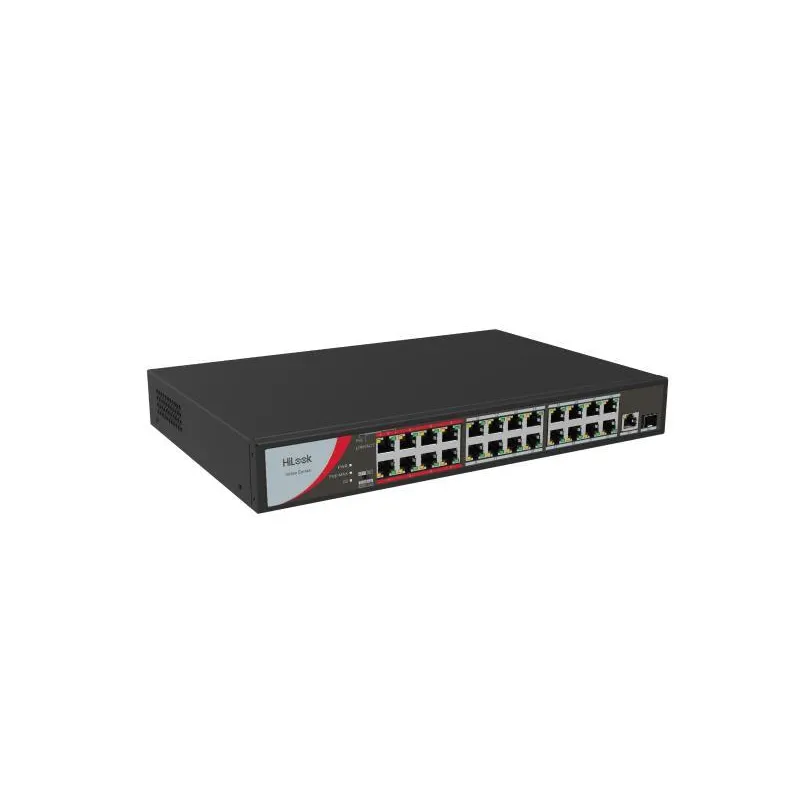

Hilook NS-0326P-230(B) 24 Port Fast Ethernet Unmanaged POE Switch
- Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
- All ports support 6 kV lighting protection
- 230 W PoE power budget
- Maximum transmission distance is 250 meters for port 17 to 24 in “extend” mode
- MAC address auto learning and auto aging
Description
Key Features
- 24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 ×
- 1000 Mbps SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- High priority ports.
- 8-core power supply.
- Up to 250 m transmission distance.
- 6 KV surge protection for PoE ports.
- PoE power management.
- 1000 Mbps network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
